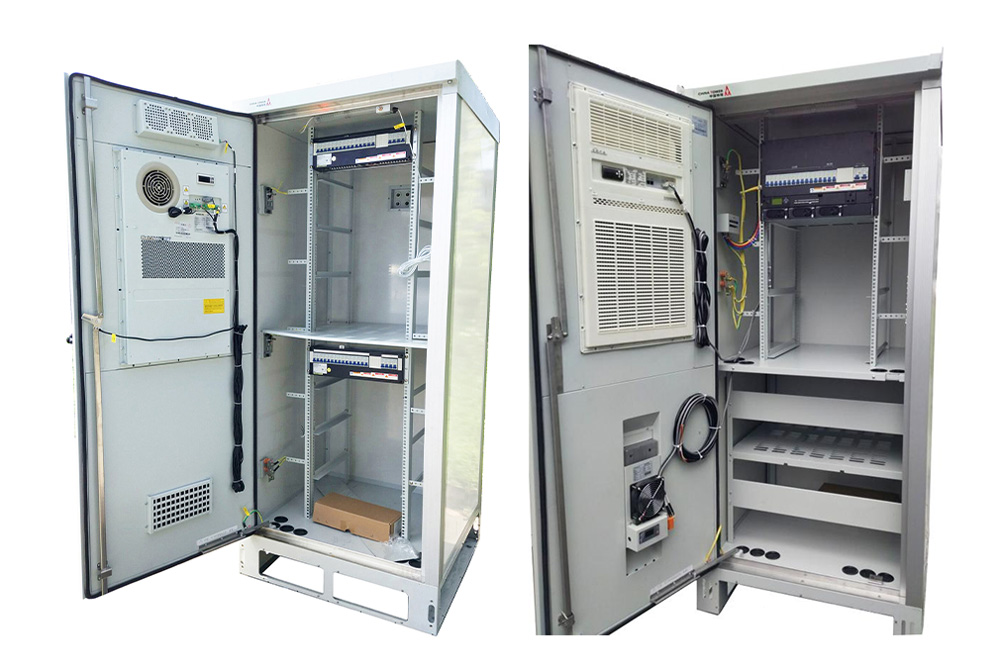

Outdoor base station cabinet RM-OTCB-JZ
RM-OTCB-JZ series communication outdoor cabinet is designed based on wireless transmission stations of large capacity quickly mounted integrated cabinet, can integrate operator’s Metro cell, RRU, BBU, integration of the switch power supply, battery etc. of a full range of 3G / 4G communications equipment at same time, and to support different systems of transmission equipment, which can realize the site quickly installation, migration, realize the construction of low cost, high efficiency, energy saving, safety mode.
Product Advantage
- The cabinet is assembling structure, can support delivery by parts packing
- All new structure design with many years of experience in using, high strength，good sealing performance，easy disassemb
- The cabinet is general structure designed, different cabinet type with same partsand components, easy to achieve replacemen
- Supporting a variety of the heat exchange equipment selection (compressor air conditioning, TEC air conditioning, heat exchange, DC fan)
- Supporting different equipment installation custom’s production
- Using open shutters with large opening angle and high ventilation efficiency
- Using black and white collocation design for beautiful appearance
- Offering a variety of monitoring alarm unit installation (water, lightning protection, access control, smoke, temperature, impact, etc.)
- Cabinet anti seismic rating of 9 intensity (with the authority issued by the inspection certificate)
- Cabinet electrical systems have passed the EMC harassment test, (with the authority issued by the inspection certificate)
- Cabinet FSU equipment, power systems, temperature control systems and other electrical equipment, products have been realized before the interconnection and interoperability
Material Introduction
- Cabinet structure is made of high quality galvanized sheet
- Cabinet sandwich board is double 0.8mm PF color steel board. Thermal conductivity 0.028 W/(m.K)
- The base is made of 2.5 mm hot dip galvanized steel plate
- The sheet metal surface have vitrified pretreatment, electrostatic powder coating of Akzonobel outdoor powder
- Pole using customized aluminum with surface oxide sandblasting processing
- The fixed screw are all made of 304 stainless steel, the grounding screw are all made of pure copper
Product Structure Analysis
Model Introduction
1. Power Cabinet
Power Cabinet

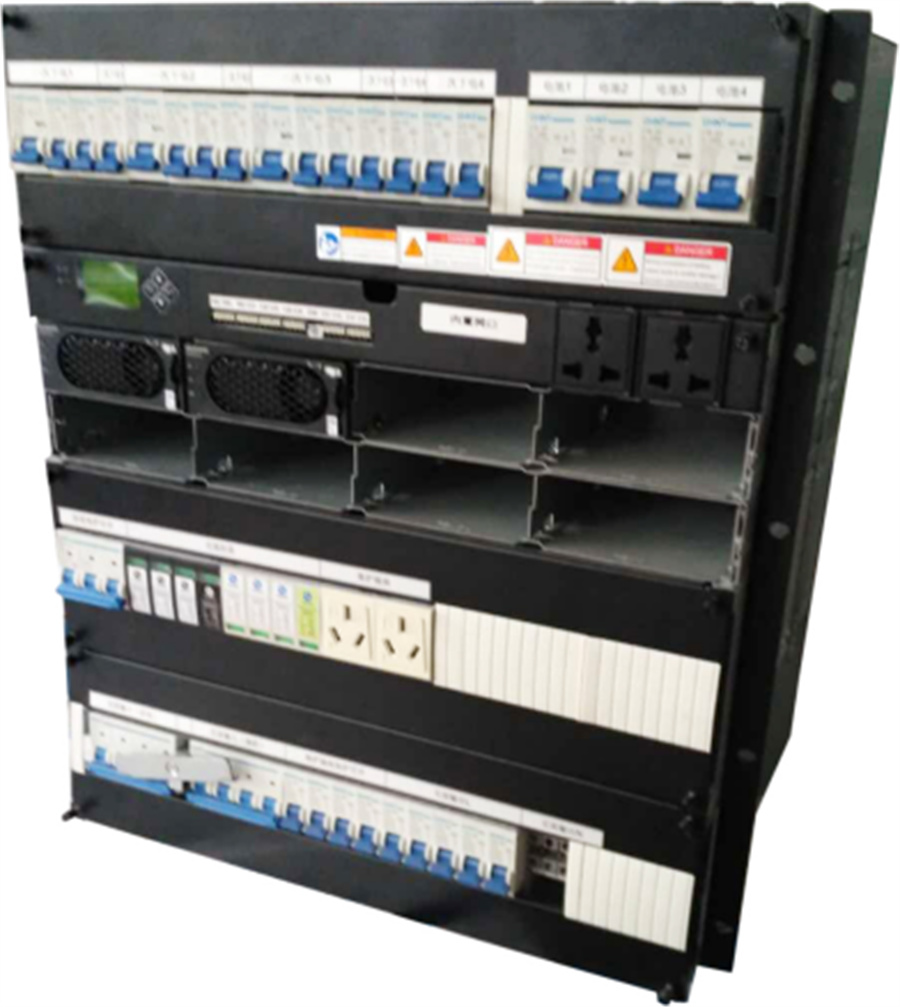

300A DC Power
2. Equipment Cabinet
BBU/RRU
3. Battery Cabinet
4. Integration Cabinet
Packaging and transportation
RM-OTCB-JZ series cabinet will adopt export fumigation wooden box during overseas business transportation. The wooden box adopts a fully enclosed structure, and the bottom uses a forklift tray, which can ensure that the cabinet will not be damaged or deformed during long-distance transportation.
Product Services
Customized service: our company design and manufacture of the RM-OTCB-JZ series Cabinets, can provide customers with customized design, including product size, function partition, equipment integration and control integration, materials custom, and other functions.
Guidance services: the purchase of my company's products to customers to enjoy life-long product use guidance services, including the transportation, installation, application, disassembly.
After sales service: Our company provides remote video and voice after-sales online services, as well as lifelong paid replacement services for spare parts.
Technical service: our company can provide every customer with complete pre-sale service, including prophase technical solution discussion, finalize the design, configuration, and other services.
The RM-OTCB-JZ series cabinets can be suitable for multiple industry applications, including communication, power, transportation, energy, security, etc.
